Gaia BH3

[1]:

import matplotlib.pyplot as plt
import numpy as np

[2]:

from exogaia.data import EpochAstrometry
from exogaia.leastsq import LeastSquares
from exogaia.samplers import MCMCSampler
from exogaia.results import SamplingResults

In preparation for Gaia DR4, the Gaia archive is in evolution. Unfortunately, it may be unstable at times and particular types of queries may time out. Please consider registering for a user account (https://www.cosmos.esa.int/web/gaia-users/register). For questions or advice, please contact the Gaia helpdesk (https://www.cosmos.esa.int/web/gaia/gaia-helpdesk).

[3]:

np.random.seed(42)

[4]:

epoch_astrom = EpochAstrometry(primary_mass=None, gaia_release="DR4")
epoch_astrom.gaia_bh3(exclude_outliers=True, combine_ccds=False)


----------------
Epoch astrometry
----------------

Gaia release: DR4
Reference epoch: 2017.5

---------------
Querying source
---------------

Gaia release: DR3
Source ID: 4318465066420528000

INFO: Query finished. [astroquery.utils.tap.core]

RA = 294.828 deg +/- 0.051 mas
Dec = 14.931 deg +/- 0.052 mas
Parallax = 1.644 +/- 0.069 mas
Proper motion in RA = -22.235 +/- 0.062 mas/yr
Proper motion in Dec = -155.276 +/- 0.059 mas/yr
G-band magnitude = 11.231
Pseudocolor = 1.48 um-1

UWE = 6.18
RUWE = 3.41
Astrometric excess noise (mas) = 0.6550 +/- 0.0014
Non single star = 0

-------------------
Gaia BH3 epoch data
-------------------

Gaia release: DR4
Reference epoch: 2017.5
Source ID: 4318465066420528000

Primary mass (Msun): 0.76 +/- 0.05

Data file: /Users/tomasstolker/code/exogaia/data/gaiabh3_epochast.dat
Data shape: (599, 12)

[5]:

print(epoch_astrom)

          transit_id  ccd_id  obs_time_tcb  centroid_pos_al  centroid_pos_error_al  parallax_factor_al  scan_pos_angle  outlier_flag  sin_scan_ang  cos_scan_ang  relative_time_year  relative_time_day
0  20114916805338633       1   2014.820290          147.066                  0.370             0.70828      -59.046727             0     -0.857587      0.514339           -2.679710        -978.764022
1  20114916805338633       2   2014.820290          146.696                  0.231             0.70828      -59.046771             0     -0.857587      0.514338           -2.679710        -978.763966
2  20114916805338633       3   2014.820290          146.685                  0.183             0.70828      -59.046816             0     -0.857588      0.514338           -2.679710        -978.763909
3  20114916805338633       4   2014.820291          146.557                  0.151             0.70828      -59.046867             0     -0.857588      0.514337           -2.679709        -978.763844
4  20114916805338633       5   2014.820291          146.396                  0.097             0.70828      -59.046904             0     -0.857589      0.514336           -2.679709        -978.763797

[6]:

leastsq = LeastSquares(epoch_astrometry=epoch_astrom)

[7]:

aen = leastsq.calc_excess_noise()


------------------------
Astrometric excess noise
------------------------

Number of iterations = 4
Number of function evaluations = 12
Number of Jacobian evaluations: 6

Astrometric excess noise (mas) = 6.7798 +/- 0.0040

[8]:

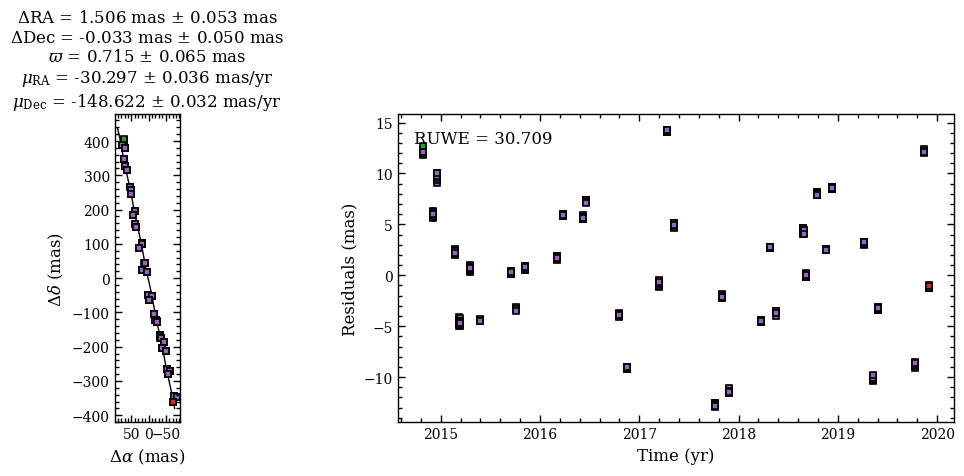

fig = leastsq.singl_5param(plot_file='plot.png')


--------------------------
Single star (5 parameters)
--------------------------

Reduced chi^2 = 3090.339
RUWE = 30.709
F2 estimator = 701.387
Inflation factor = 55.622

Best-fit parameters:
   - RA offset = 1.506 +/- 0.053 mas
   - Dec offset = -0.033 +/- 0.050 mas
   - Parallax = 0.715 +/- 0.065 mas
   - mu in RA = -30.297 +/- 0.036 mas/yr
   - mu in Dec = -148.622 +/- 0.032 mas/yr
../_images/tutorials_gaia_bh3_8_1.png
[9]:

print(leastsq)

LeastSquares(Δα = 1.50624 mas, Δδ = -0.0334119 mas, ϖ = 0.7152 mas, μ_α = -30.2968 mas/yr, μ_δ = -148.622 mas/yr)

[10]:

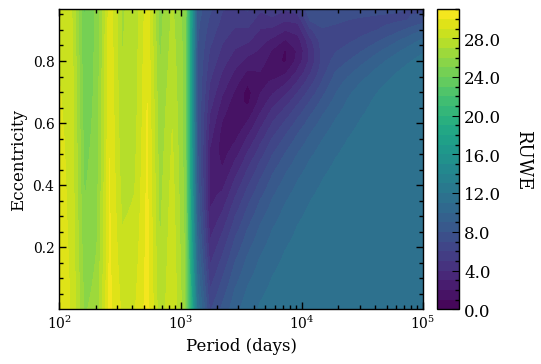

fig = leastsq.orbit_grid(map_type='ruwe', plot_file='plot.png', n_points=30)


--------------------------
Orbit grid (12-parameters)
--------------------------



Best-fit RUWE = 0.614

Best-fit stellar track:
   - RA offset (mas) = 4.822 +/- 0.018
   - Dec offset (mas) = 1.732 +/- 0.015
   - Parallax (mas) = 1.687 +/- 0.009
   - mu in RA (mas/yr) = -28.869 +/- 0.015
   - mu in Dec (mas/yr) = -154.238 +/- 0.013

Best-fit orbit:
   - Period (days) = 3562.248
   - Eccentricity = 0.700
   - Relative time of periastron = 0.07
   - Thiele-Innes A = 2.003 +/- 0.022
   - Thiele-Innes B = 9.670 +/- 0.025
   - Thiele-Innes F = 17.907 +/- 0.026
   - Thiele-Innes G = -15.021 +/- 0.028

Derived parameters:
   - Semi-major axis of photocenter (mas) = 23.906 +/- 0.024
   - Relative semi-major axis (au) = 14.515
   - Mass function (Msun) = 2.992e+01
   - Companion mass (Msun) = 3.139e+01

Conversion to campbell elements:
   - Period = 3562.248 days
   - Eccentricity = 0.700
   - Relative time of periastron = 0.067
   - Semi-major axis of photocenter (mas) = 23.906
   - Inclination (deg) = 110.832
   - Argument of periastron (deg) = 77.006
   - PA of ascending node (deg) = 135.317
../_images/tutorials_gaia_bh3_10_3.png
[11]:

print(leastsq)

LeastSquares(Δα = 4.82247 mas, Δδ = 1.73241 mas, ϖ = 1.68696 mas, μ_α = -28.8692 mas/yr, μ_δ = -154.238 mas/yr, P = 3562.25 days, e = 0.7, τ = 0.0666675, a = 23.9065 mas, i = 1.93438 rad, ω = 1.34401 rad, Ω = 2.36173 rad)

[12]:

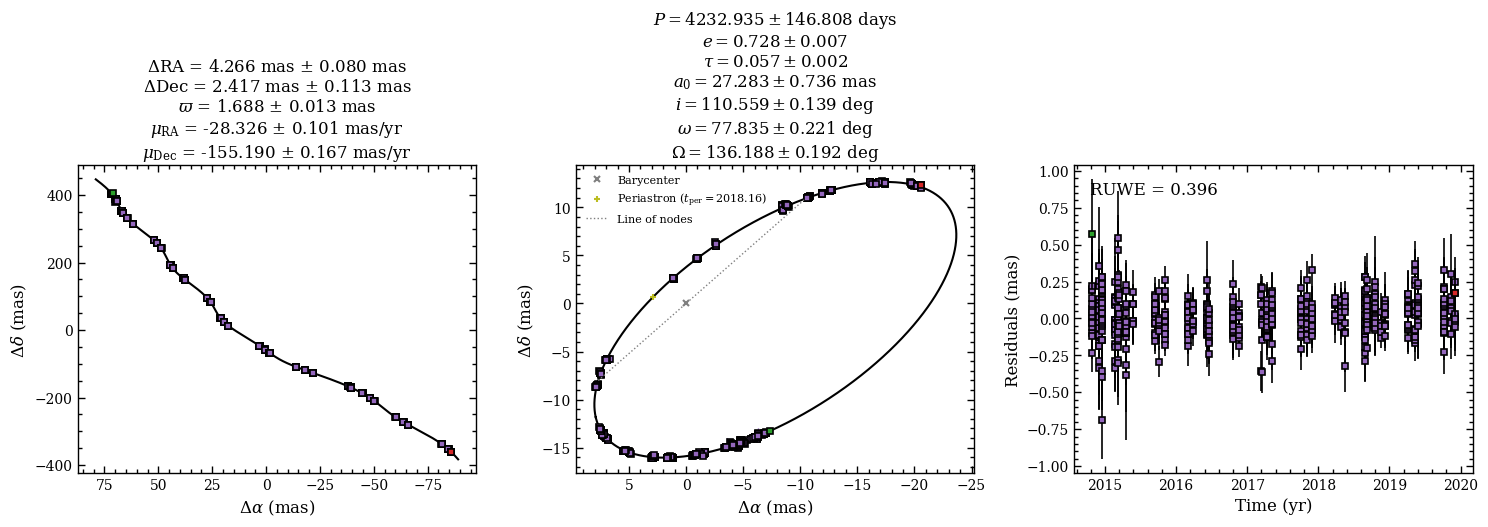

fig = leastsq.orbit_fit(inc_jitter=True, plot_file='plot.png')


-------------------------
Orbit fit (12 parameters)
-------------------------

Reduced chi^2: 0.515
RUWE: 0.396

Best-fit stellar track:
   - RA offset (mas) = 4.266 +/- 0.080
   - Dec offset (mas) = 2.417 +/- 0.113
   - Parallax (mas) = 1.688 +/- 0.013
   - mu in RA (mas/yr) = -28.326 +/- 0.101
   - mu in Dec (mas/yr) = -155.190 +/- 0.167

Best-fit orbit:
   - Period (days) = 4232.935 +/- 146.808
   - Eccentricity = 0.728 +/- 0.007
   - Relative time of periastron = 0.057 +/- 0.002
   - Semi-major axis of photocenter (mas) = 27.283 +/- 0.736
   - Inclination (deg) = 110.559 +/- 0.139
   - Argument of periastron (deg) = 77.835 +/- 0.221
   - PA of ascending node (deg) = 136.188 +/- 0.192
   - Jitter (mas) = 0.105 +/- 0.000

Number of function evaluations: 31
Number of Jacobian evaluations: 27

Derived parameters:
   - Relative semi-major axis (au) = 16.539
   - Mass function (Msun) = 3.146e+01
   - Companion mass (Msun) = 3.293e+01
../_images/tutorials_gaia_bh3_12_1.png
[13]:

print(leastsq)

LeastSquares(Δα = 4.26642 mas, Δδ = 2.41716 mas, ϖ = 1.6877 mas, μ_α = -28.3259 mas/yr, μ_δ = -155.19 mas/yr, P = 4232.93 days, e = 0.728362, τ = 0.0568078, a = 27.2834 mas, i = 1.92961 rad, ω = 1.35848 rad, Ω = 2.37693 rad)

[14]:

sampler = MCMCSampler(epoch_astrometry=epoch_astrom, least_squares=leastsq)


------------
MCMC sampler
------------

Primary mass (Msun) = 0.76 +/- 0.05
Number of parameters: 12

Priors:
   - ra_offset -> Normal: [4.27, 0.10]
   - dec_offset -> Normal: [2.42, 0.10]
   - parallax -> Normal: [1.69, 0.10]
   - pmra -> Normal: [-28.33, 0.10]
   - pmdec -> Normal: [-155.19, 0.10]
   - per -> Normal: [4232.93, 146.81]
   - ecc -> Normal: [0.73, 0.01]
   - tau -> Normal: [0.06, 0.00]
   - sma -> Normal: [27.28, 0.74]
   - inc -> Normal: [1.93, 0.00]
   - aop -> Normal: [1.36, 0.00]
   - pan -> Normal: [2.38, 0.00]

[15]:

sampler.run_ptmcmc(
    pickle_file="exogaia.pkl",
    n_temps=10,
    n_walkers=200,
    n_steps=1000,
    n_sweeps=1,
    progress=True,
)


-------------
Run reddemcee
-------------


100%|████████████████████████████████████████████████████████| 10000/10000 [08:37<00:00, 19.33it/s]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [57.06696436 60.09262007 52.56313592 59.13507335 60.44338677 60.18495565
 59.24177886 60.59007372 60.02827904 60.90721902 58.58101248 63.70167574]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [61.69334832 58.02831996 53.61006381 55.50916581 53.95324379 55.69630651
 58.19308878 56.99060923 54.74073242 60.24945582 60.99885778 59.24236956]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [57.07569915 56.61779895 59.57930956 58.72707847 57.99421217 56.5266164
 55.5961875  55.18568375 55.6917287  59.83141351 58.67777842 59.46779192]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [59.26917946 60.76766085 59.05575053 62.58330938 61.81983834 60.21846228
 60.08924025 58.10230087 60.65407613 62.2504053  57.02557933 57.26491628]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [57.99378694 57.30275798 57.79194441 60.16515768 58.4621831  57.94693872
 62.142468   60.22942429 58.78720384 63.66018042 60.80548745 59.89402284]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [62.48679426 62.61100673 61.64318744 58.99849634 60.94038399 61.55685352
 61.95364886 60.51238997 60.05168612 63.68061381 61.82544084 56.8591013 ]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [62.74975295 60.06920225 57.26213675 60.5883497  59.35194925 60.51704437
 58.25296104 57.50566232 60.29919561 63.06053686 60.61329276 62.28912184]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [63.30487725 58.93048127 66.47655399 60.59562067 58.95548167 57.40479981
 59.61078619 56.43725872 58.22025571 59.72511215 60.29187094 61.4267149 ]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [58.68578945 63.08461451 61.28253235 59.38301628 58.12241335 62.88511911
 64.27288677 63.75585066 60.51579328 62.96530107 61.98349526 67.22028983]
The chain is shorter than 50 times the integrated autocorrelation time for 12 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [62.19229991 62.87370557 63.346709   64.53083195 60.84444576 62.22782852
 60.3842052  61.37790707 64.86591551 61.10199816 65.85392119 62.54658128]

[16]:

results = SamplingResults(burnin=500, pickle_file="exogaia.pkl")


-----------
Fit results
-----------

Number of parameters: 12
Samples shape: (10, 1000, 200, 12)

Burnin: 500
Samples shape: (10, 500, 200, 12)

Reshaped samples: (1000000, 12)

[17]:

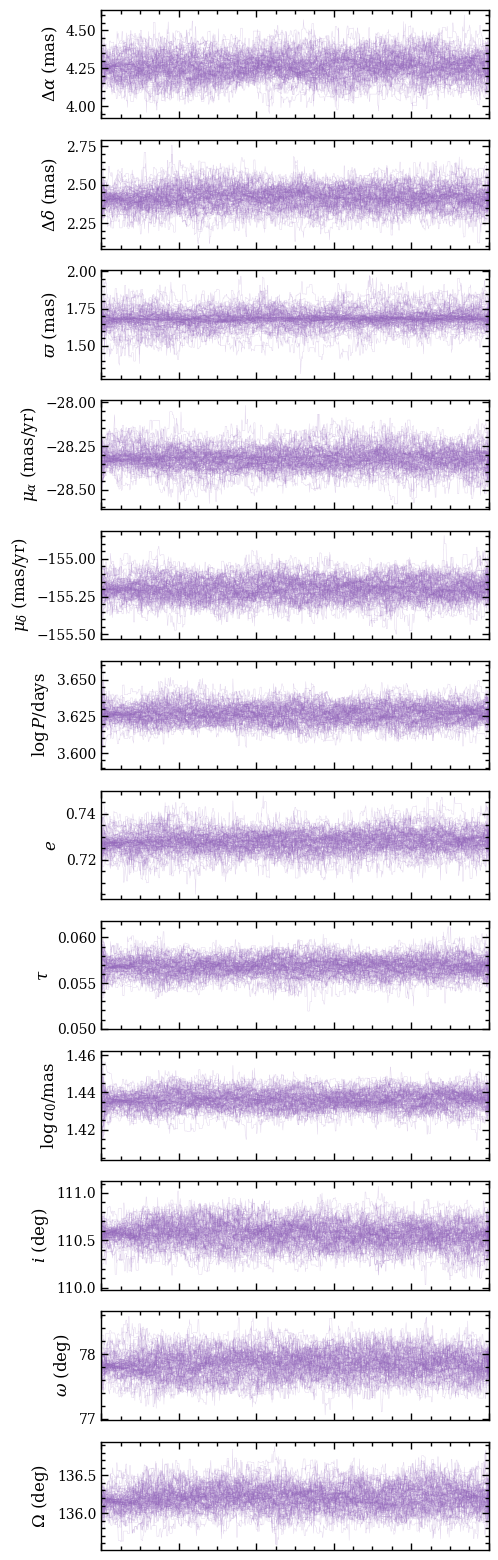

fig = results.plot_walkers(n_walkers=100, thin=None, plot_file="plot.png")


------------
Plot walkers
------------

Number of walkers: 100
Thin value: 1
Output file: plot.png
../_images/tutorials_gaia_bh3_17_1.png
[18]:

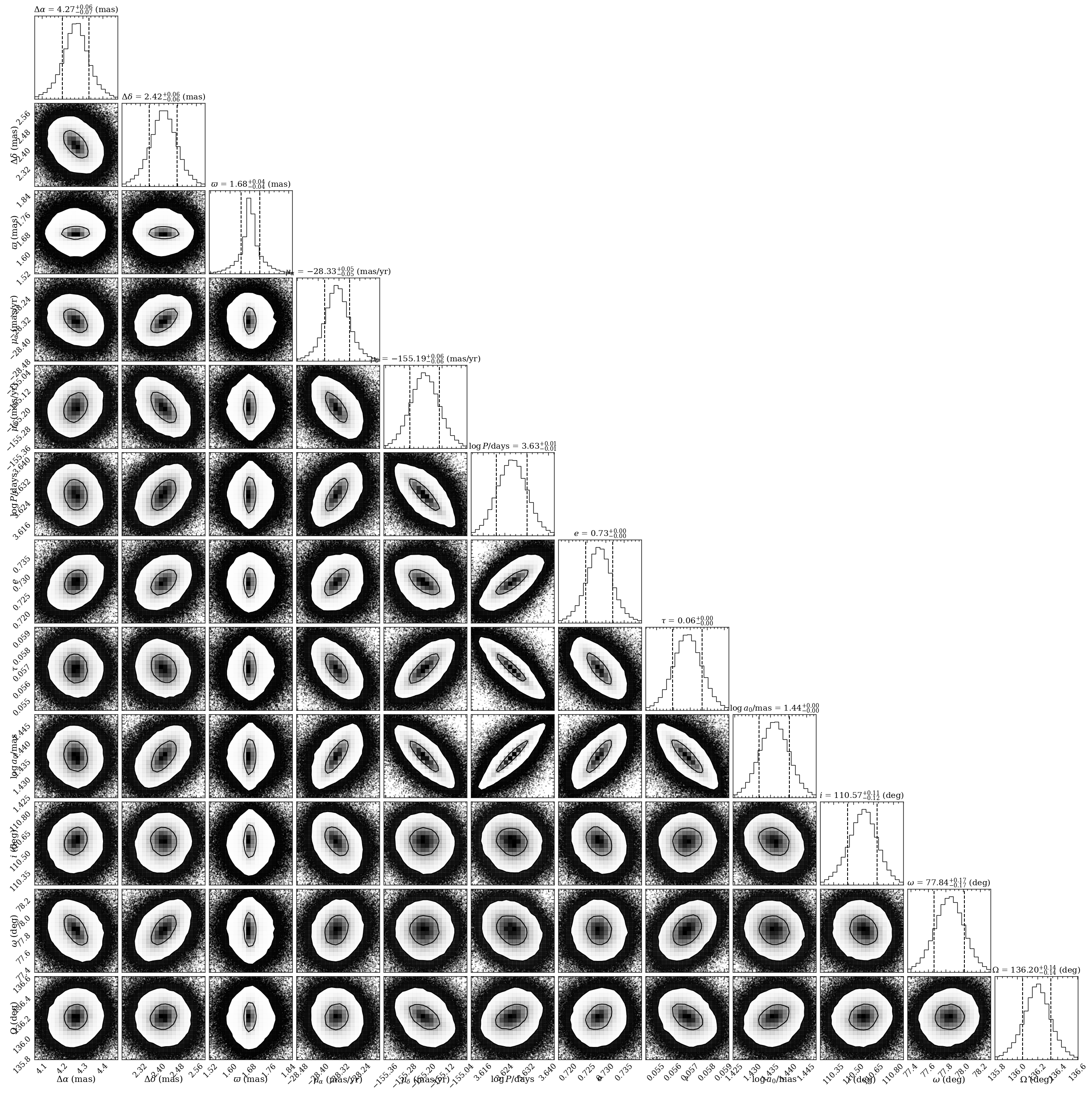

fig = results.plot_posterior(truths=None, plot_file="plot.png")


--------------
Plot posterior
--------------

Output file: plot.png
../_images/tutorials_gaia_bh3_18_1.png
[19]:

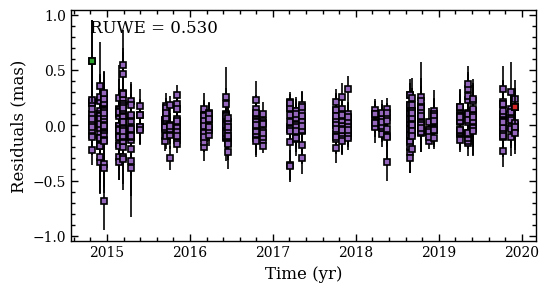

fig = results.plot_residuals(plot_file="plot.png")


--------------
Plot residuals
--------------


-----------------------
Calculate stellar track
-----------------------

Stellar parameters:
   - RA offset (mas) = 4.258
   - Dec offset (mas) = 2.427
   - Parallax (mas) = 1.681
   - Proper motion in RA (mas/yr) = -28.332
   - Proper motion in Dec (mas/yr) = -155.188

---------------------
Calculate orbit model
---------------------

Orbit parameters:
   - Period (days) = 4226.527
   - Eccentricity = 0.728
   - Relative time of periastron = 0.057
   - Semi-major axis (mas) = 27.249
   - Inclination (deg) = 110.589
   - Argument of periastron (deg) = 77.868
   - PA of ascending node (deg) = 136.203
../_images/tutorials_gaia_bh3_19_1.png
[20]:

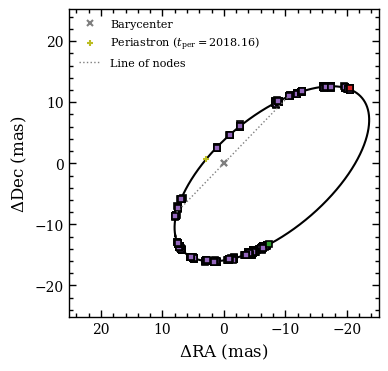

fig = results.plot_orbit(plot_file="plot.png")


----------
Plot orbit
----------
../_images/tutorials_gaia_bh3_20_1.png
